How to Install & Run ziti-mobile-edge on IOS

ziti-mobile-edge is an IOS app that configures a transparent proxy for the OpenZiti Edge. This means the device where it is running will be able to connect to any OpenZiti services with DNS or IP address, and any servers that are reachable by the device may be published to the OpenZiti Network.


Follow the below steps to install and verify ZME on IOS

Step 1: Create an endpoint and download JWT

You need an enrollment token ( JWT) that is issued to you by your administrator of the NetFoundry console. If you have the registration token, proceed to step 2.

If you have to provision your endpoint, click here, for step by step process of creating an endpoint and downloading the JWT

Step 2: Install ZME from the App Store

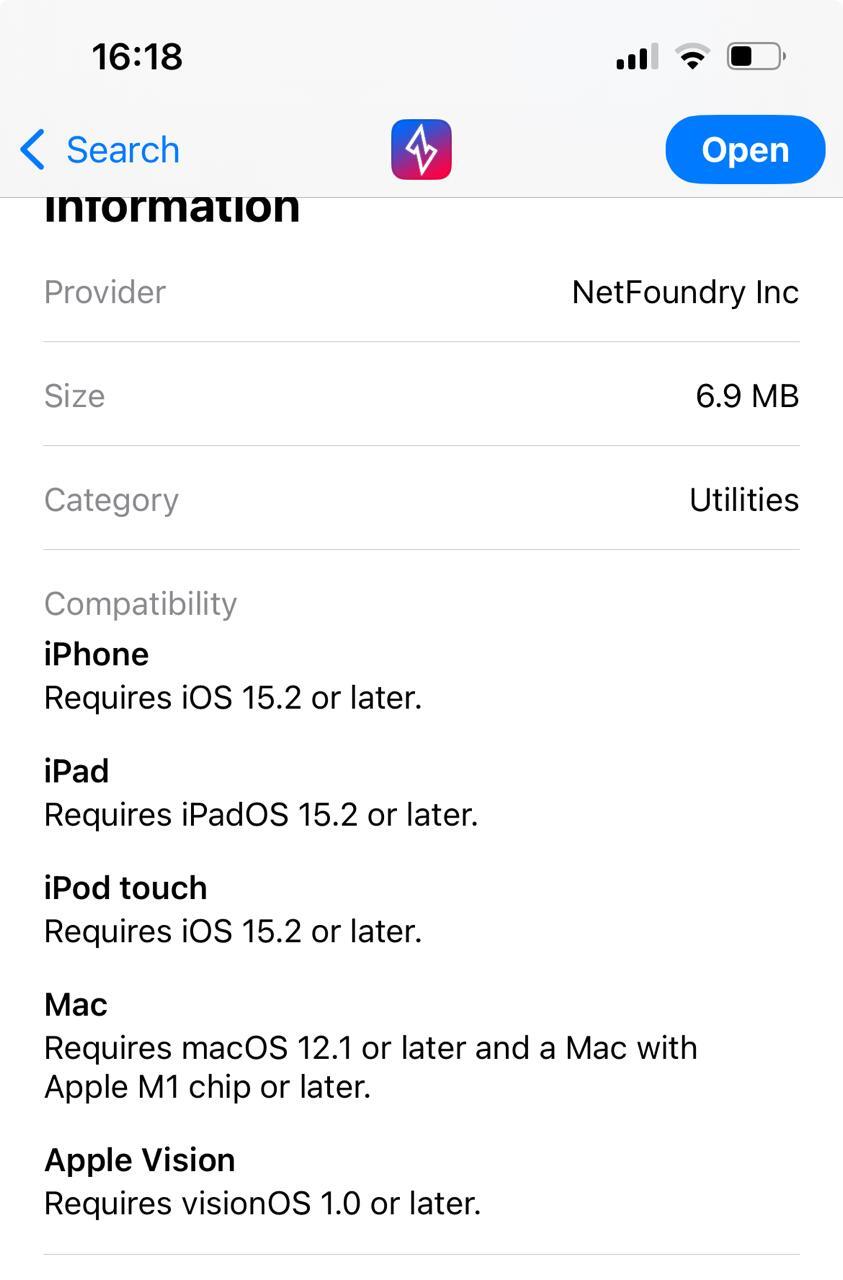

Go to the App Store on IOS mobile and search for Ziti Mobile Edge, click on the get button to install the app as shown below.



After the installation open the app and allow the app to add a VPN configuration and send notifications






Step 3: Enroll the Identity

Once the ZME is installed, open the app >> click on add identity >> select the enrollment method as JWT >> select the registration token (JWT) which is shared by your administrator or created by yourself.

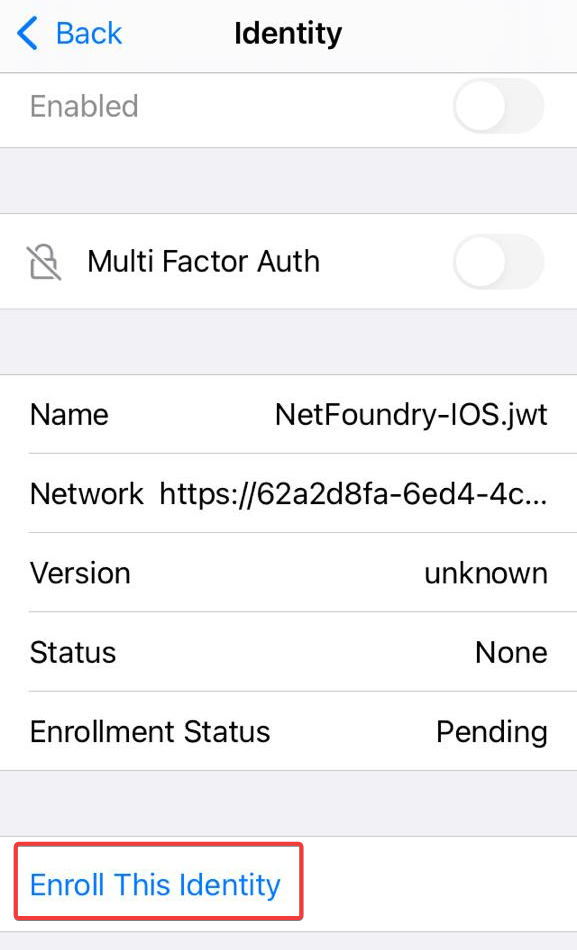

Once the registration token is selected, click on Enroll this Identity button to enroll the Identity. After successful enrollment, you can see the Enrollment Status as Enrolled.






Step 4: Run ZME

After successful enrollment, go back to the home, and click on the Status slide to enable the ZME.






Step 5: Verify

Once the ziti mobile edge app started we can observe that the endpoint as registered on MOP.
