Customer Edge Router Re-Registration

Follow

Re-registration is the process of re-enrolling the ER to the NW.

Follow below steps to re-register the Edge Router

MOP Console

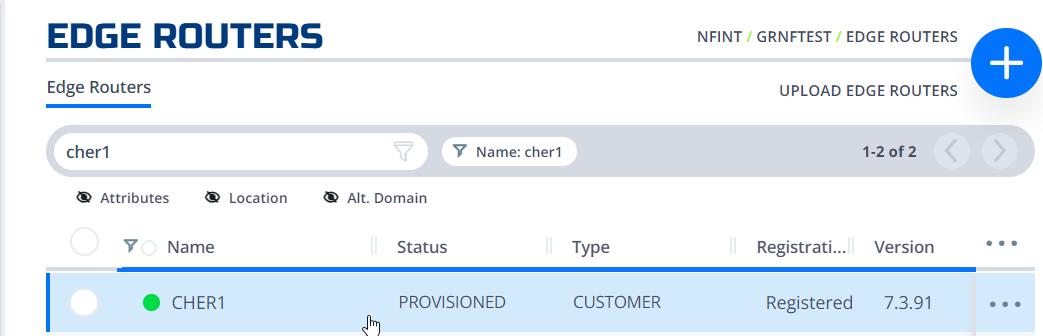

Step 1: Login to Netfoundry MOP console and Go to Edge Routers section

Step 2: Select the ER you would like to re-register

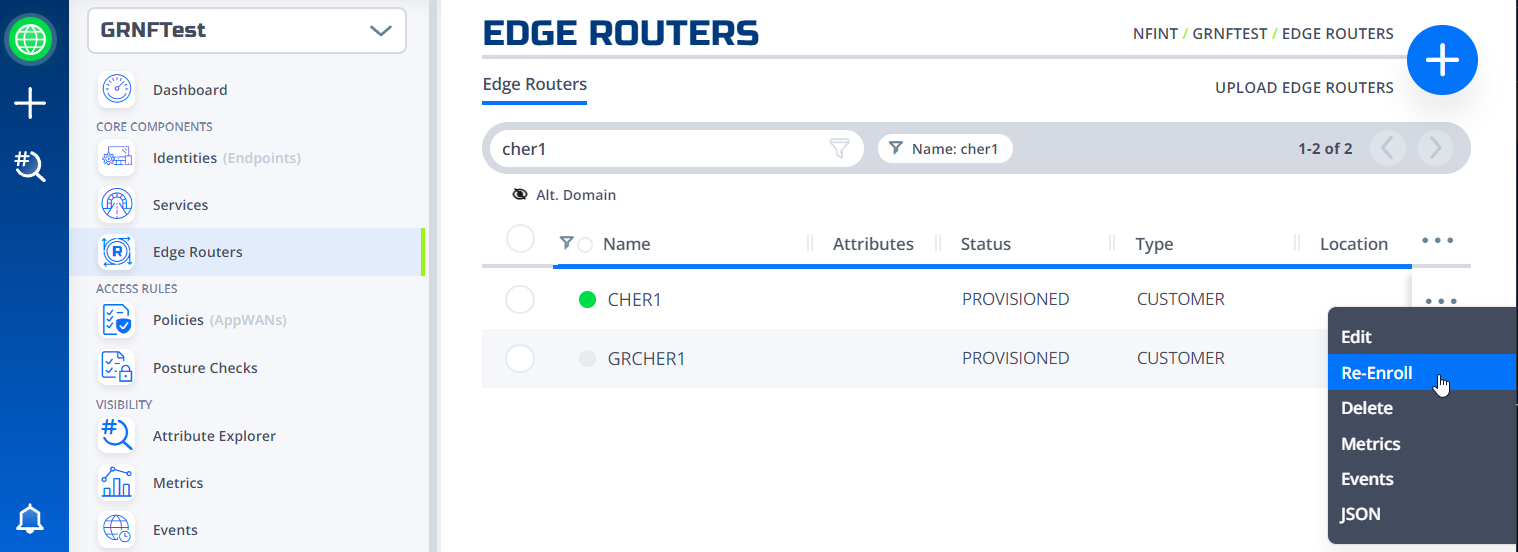

Step 3: Click on the three dots and click on Re-Enroll as shown in below capture

Copy Registration Key

• Once you click on the Re-Enroll the ER registrations status will show as Not Registered

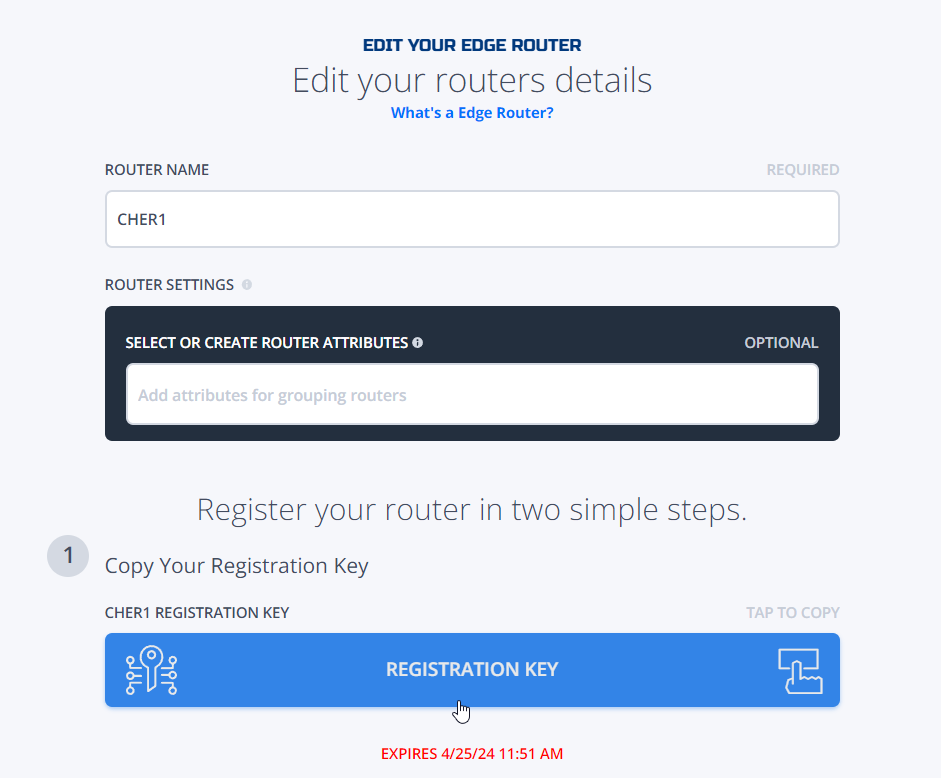

• Open the ER and click on the Registration Key to copy the new registration token

Login to ER

• Once you have the token login to the ER and use below command to re-register the ER. Replace the <registration key> with the token

sudo router-registration <registration key> --force

Verify

• After a successful registration, the ER registration status will show as registered.
