NetFoundry for Multi-Cloud Networking

NetFoundry Platform Architecture



Introduction

Multi-cloud model of cloud computing where an organization utilizes a combination of clouds (two or more private clouds or a combination of public and private clouds) to distribute applications and services come with complexity in networking.

1. MPLS VPNs / Private lines are costly and take time to establish. They are not an option for B2B multi-cloud networks. Translating VRFs for micro segmented networks is a challenge or is not feasible across multiple cloud providers

2. VPNs on the other hand are inherently prone to attacks due to open ports / IPs that are listening for traffic. VPNs do not support mesh and do not support micro - segmentation. VPNs lack strong authentication and authorization

3. Management is a nightmare in both the above solution options.



NetFoundry provides a best-in class secure, agile and simple solution to the complex multi-cloud networking challenge.

 This article will guide you on steps to establish a Zero Trust Private connection between two or more cloud locations ( Public/ Private Datacenters) via the NetFoundry Zero Trust Network as a Service.






In our lab setup, we have considered an intercloud setup between AWS Singapore and Azure Pune. The test applications are hosted both at AWS Singapore and Azure Pune. The hosted edge routers are provisioned at AWS Singapore and Azure Pune.

 In this test scenario, we are provisioning customer edge routers at AWS and Azure. The apps/servers at AWS and Azure are expected to communicate with each other via the NetFoundry network. They are not reachable over the internet.



Create a network

The options in a Teams / Growth plan may vary. Refer to the support guide on creating a network on a Teams / Growth account.

For Enterprise accounts, follow the below steps:

  • Log in to your NetFoundry Console athttps://nfconsole.io/.
  • Once logged in, you will be prompted to create your network.
  • Give your network a name.
  • Hit Create My Network to commence the provisioning of your network.
  • It will take approximately 5-10 minutes for the network provisioning to complete. Once your network is ready, you will see the spinning globe icon turning green.





For additional information or assistance please see our Support Hub article Product v7-Create and Manage Networks.

Create edge routers

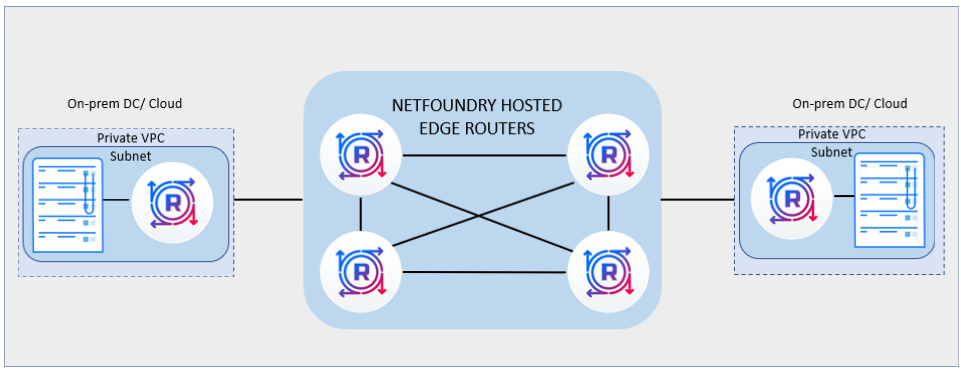

Edge Router Connectivity Diagram



Provision NetFoundry-hosted Edge routers

NetFoundry hosted Edge Routers provide data transport as part of the fabric for endpoints and customer edge routers to dial to the fabric.  At least one publicly accessible Edge Router is required for endpoints and edge routers to create a fabric. Having a min of two hosted ERs is a best practice for redundancy and smart routing.

  • From your Network Dashboard page, navigate to Edge Routers.
  • Under the Edge Routers tab, click on the + sign at the upper right to add an edge router.
  • Give your edge router a name.
  • Give your edge router a router attribute (optional). Router attributes are tags applied to a router. The same tag can be applied to other edge routers to form a group of NetFoundry-hosted Edge Routers.
  • Select NetFoundry Hosted as your hosting type, and choose the Data Center region strategic to Cloud Resources.
  • Hit Create to commence the provisioning of your edge router.
  • Once your edge router is registered, it will start accepting outbound fabric connections from a private-launched edge router, as well as from clients accessing the fabric.






To learn more about Edge Routers go to the Create and Manage Edge Routers article on the NetFoundry Support Hub.

Provision On-prem DC / AWS / Azure / OCI / any Public Cloud Edge Router

Customer self-hosted Edge Routers act as ingress/ egress routers for customers to reach the hosted services on their premise or datacentre.

In this test scenario, we are provisioning two customer edge routers, one at AWS and the other at Azure. The apps/servers at AWS and Azure are expected to communicate with each other via the NetFoundry network.

Create and Register On-premise DC Edge Router

  • From your Network Dashboard page, navigate to Edge Routers.
  • Under the Edge Routers tab, click on the + sign at the upper-right to add an edge router.
  • Give your edge router a name.
  • Give your edge router a router attribute (optional). Router attributes are tags applied to a router. The same tag can be applied to other edge routers to form a group of Customer-hosted Edge Routers.
  • Select Customer Hosted as your hosting type.
  • Hit Create to complete the process.
  • A new customer-hosted edge router would be created with the registration key as below. This registration key is required to register the edge router to the network.
  • Copy your edge router registration key. You may also opt to save it as a JWT or a config file.

Use the below deployment guides to provision a Customer-hosted Edge Router into a branch office or a private cloud.

https://support.netfoundry.io/hc/en-us/articles/5700949793293-Deployment-guides-for-provisioning-customer-edge-routers-in-a-private-cloud

Create and Register AWS / Azure / OCI / any Public Cloud Edge Router

  • From your Network Dashboard page, navigate to Edge Routers.
  • Under the Edge Routers tab, click on the + sign at the upper-right to add an edge router.
  • Give your edge router a name.
  • Give your edge router a router attribute (optional). Router attributes are tags applied to a router. The same tag can be applied to other edge routers to form a group of Customer-hosted Edge Routers.
  • Select Customer Hosted as your hosting type.
  • Hit Create to complete the process.
  • A new customer-hosted edge router would be created with the registration key as below. This registration key is required to register the edge router to the network.
  • Copy your edge router registration key. You may also opt to save it as a JWT or a config file.

Use the below deployment guides to provision a Customer-hosted Edge Router into your AWS / Azure/ GCP/ OCI.

https://support.netfoundry.io/hc/en-us/articles/5701001893133-Deployment-guides-for-provisioning-customer-edge-routers-in-public-clouds

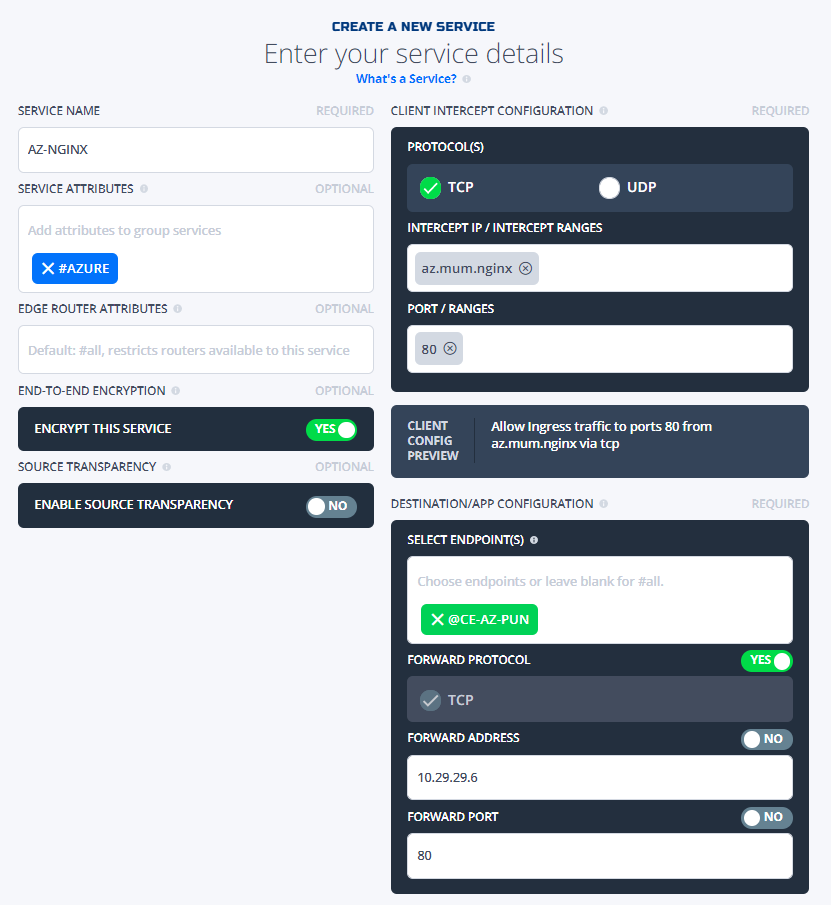

Creating services

The service definition provides the details of what device, or devices) will be utilized to provide access to services, either on the device(Zero Trust Client SDK Application) or on the network connected to the device (via its LAN, for example).  The service also defines how the endpoints acting as clients to the service will access the service.  Also, the service hosting details are provided.

  • From your Network Dashboard page, navigate to Services.
  • Under the Services tab, click on the + sign at the upper right to add a service.
  • Choose the type of your service. Clicking on Advanced Services allows you to create services with IP/Port ranges.
  • Select Advanced Service as the service type and give the service a name. Give your service a service attribute (optional). Service Attributes are tags applied to a service. The same tag can be applied to other services to form a group of services.
  • In the Edge Router Attributes field, specify the public ( ex NF Hosted) edge routers participating in this service. If all edge routers are participating in this service, then leave this field blank.
  • The Client intercept configuration is the section used to denote how the Client Endpoints that will be utilizing this service need to access it. There can be a hostname or IP Address or IP subnet specified, along with the application port numbers or port ranges. Multiple individual ports  or port ranges can be configured. The hostname can be any contrived hostname to be utilized by the Client user.  The protocol - TCP or UDP or both may be allowed.
  • The Destination Configuration  is used to configure the terminating endpoints and the destination details if forwarding is disabled. Select one or more endpoints to host the service by the individual endpoint names or endpoint group attributes . Select protocol / address / port forwarding if the destination is reachable on the same hostname / IP / procotol / port or ports as in the client intercept configuration.
  • If the destination IP / hostname / port are different from the client configuration, you can disable forwarding of IP / hostname or port or protocol and provide the details. The NetFoundry local DNS will resolve the client configuration to the destination configuration. Ensure that the application / destination is reachable on the IP / port / port range / protocol as specified in the destination configuration.

  • Hit Create to complete the process.





For additional information or assistance please see our Support Hub article Create and Manage Services.

Creating an AppWAN

The AppWAN defines the services that can be accessed by one or more client endpoints.

  • From your Network Dashboard page, navigate to AppWANs.
  • Under the AppWANs tab, click on the + sign at the upper right to add an AppWAN.
  • Give your AppWAN a name.
  • In the Service Attributes field, specify the services or service attributes to be associated with this AppWAN.
  • In the Edge Router Attributes field, specify the edge routers or edge router attributes to be associated with this policy.
  • In the Endpoint Attributes field, specify the endpoints or endpoint attributes to be associated with this policy.
  • Hit Create to complete the process.

Note: Use of endpoint/service/edge router attribute will select all endpoints/services/edge routers having that specific attribute. The @ symbol is used to tag Individual endpoints/services/edge routers and the # symbol is used to tag a group of endpoints/services/edge routers.

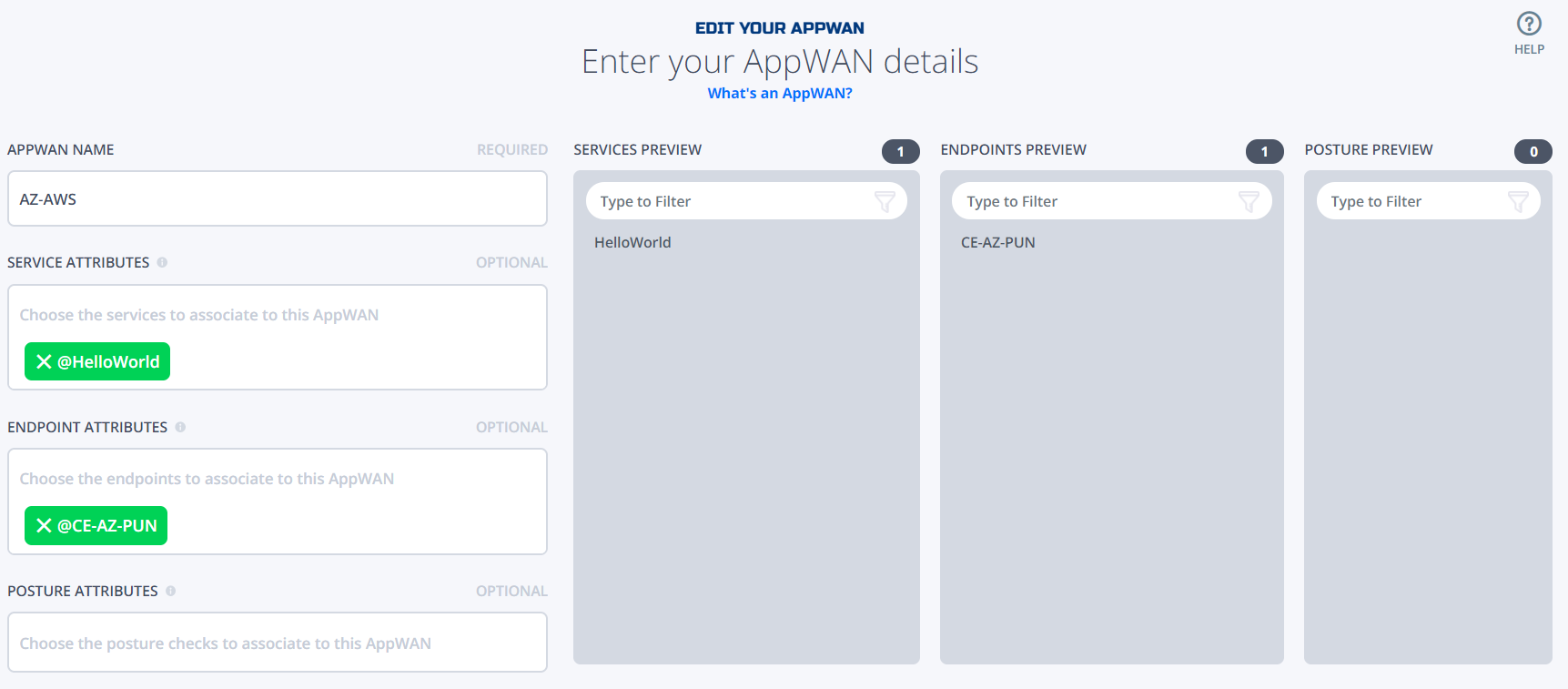

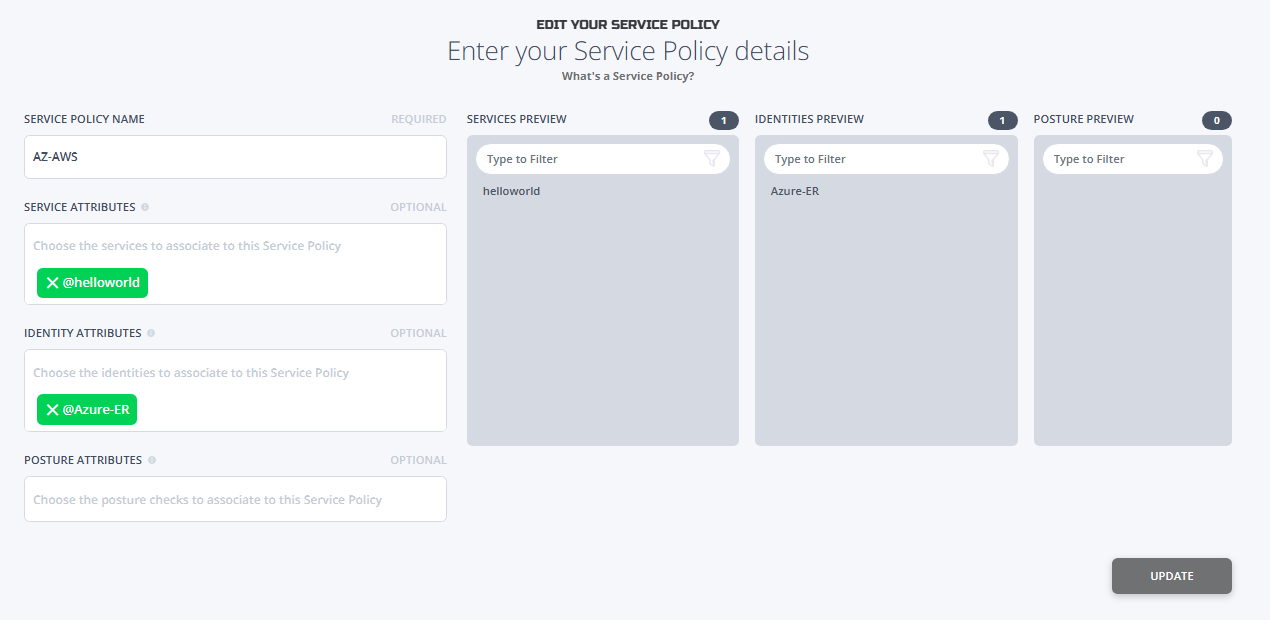

APPWAN 'AZ-AWS' is created to allow the Azure Pune Edge router to connect to the HTTP server in AWS.

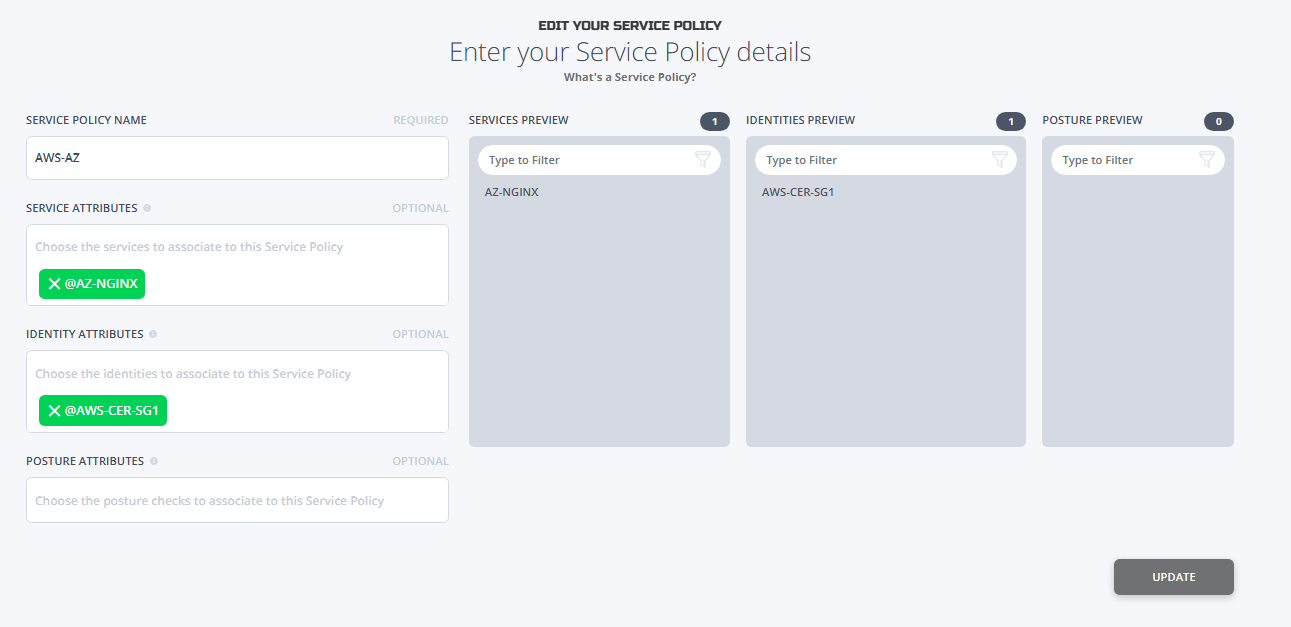

APPWAN 'AWS-AZ' is created to allow the AWS Singapore Edge router to connect to the Nginx server in Azure.




For additional information or assistance please see our Support Hub article Create and Manage AppWANs.

Inter-cloud Application access

Cloud Configuration

Azure Subnet: 10.29.29.0/24 AWS Subnet: 172.29.29.0/24
Edge Router 10.29.29.4 Edge Router 172.29.29.218
NF Ziti Suffix: 100.64.0.0/10



Cloud Hostname IP
AWS hello.nf 172.29.29.16
Azure az.mum.nginx 10.29.29.6

AZURE CONFIGURATION

  • Enable “IP forwarding” on the Netfoundry gateway that acts as a client-side endpoint.
  • Define Route for the AWS subnet, 100.64.0.0/10 [Ziti-suffix], Internet-bound traffic in the router table
  • Configure security group to allow port 53, 3389, 80 in-bound to edge router instance.
  • Azure Edge router IP 10.29.29.4 is configured as DNS for the Windows machine from which AWS Hello world demo Server is accessed.




AWS CONFIGURATION

  • Disable “source & destination check” on the Netfoundry gateway that acts as a client-side endpoint.
  • Define Route for the Azure subnet, 100.64.0.0/10 [Ziti-suffix], Internet-bound traffic in the router table

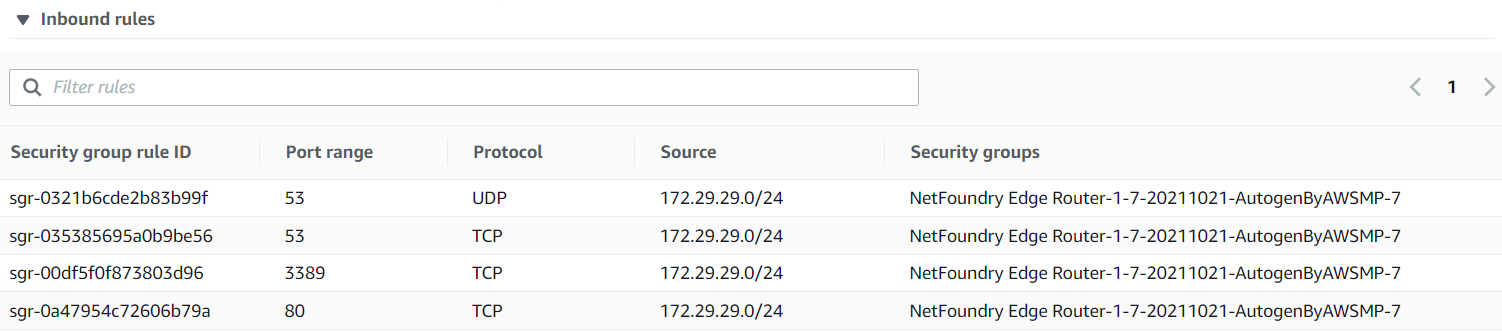

  • Configure security group to allow port 53, 3389, 80 inbound to edge router instance.
  • AWS Edge router IP 172.29.29.218 is configured as DNS for the Windows machine from which Azure Nginx Server is accessed.




HTTP access to the AWS Hello world demo Server from Azure

Once the Service, AppWAN configuration is completed in the NetFoundry console, you will be able to make HTTP access to the AWS Hello world demo Server from Azure.

The application or server is accessed via a private hostname that is not reachable via the internet. The application is therefore dark to the outside world and reachable only within the NetFoundry network.

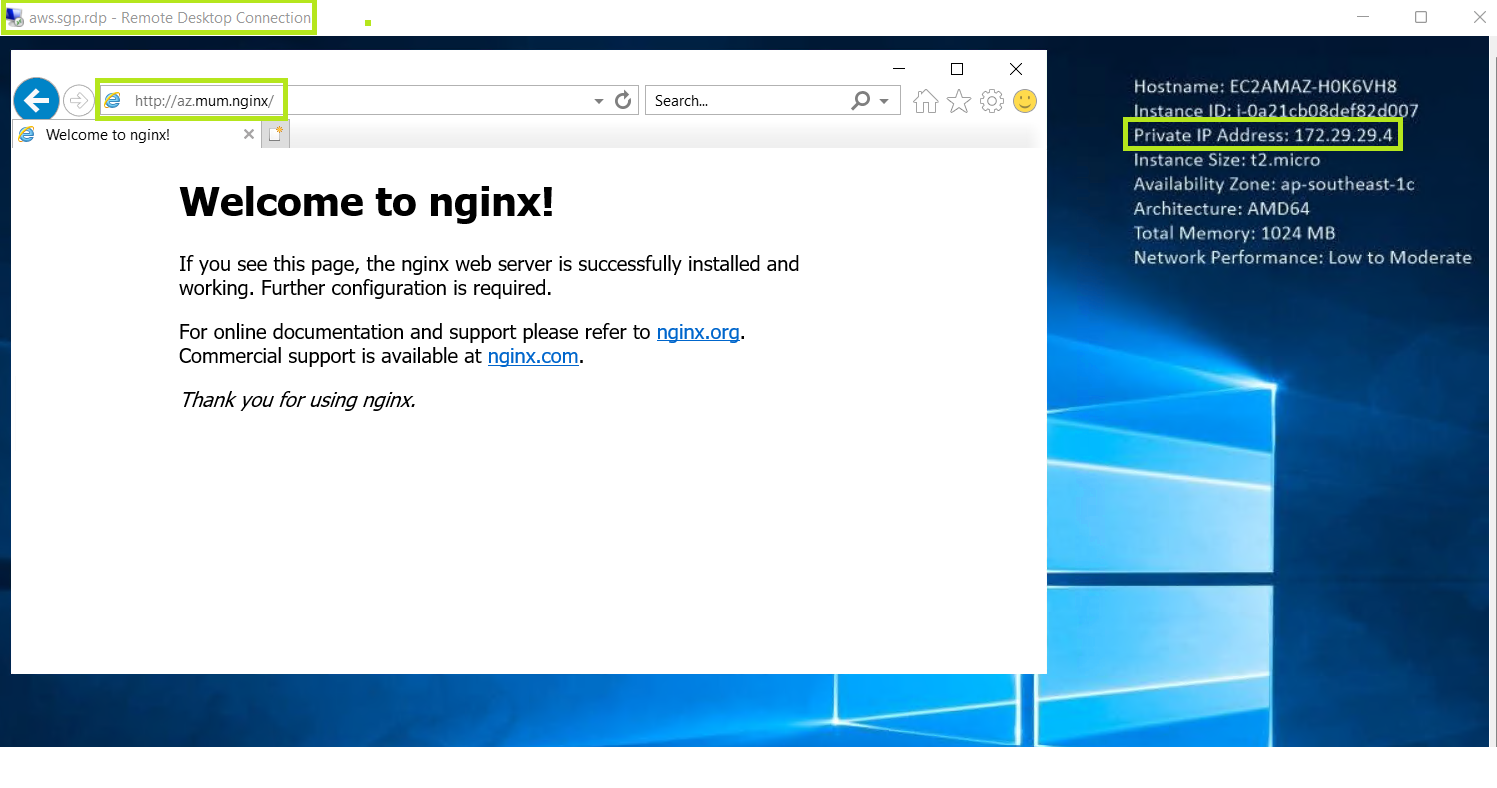

HTTP access to Azure Nginx Server from AWS

Once the Service, AppWAN configuration is completed in the NetFoundry console, you will be able to make HTTP access to Azure Pune Nginx Server from AWS Singapore PC.

The application or server is accessed via a private hostname that is not reachable via the internet. The application is therefore dark to the outside world and reachable only within the NetFoundry network.
