Accessing Mattermost with Browzer
Follow

Introduction

This guide is a walk through to setup a BrowZer application to access Mattermost.

To learn more about BrowZer see Getting started with BrowZer

Prerequisites

A Cloud Ziti Network up and running.
Having a Mattermost instance up and running with an edge router that has network access. Please follow Appendix instructions to install Mattermost(preview) if you don't already have a Mattermost instance up and running. Please note the Mattermost preview is not an production instance, when using a production setup the ER will be separate from the Mattermost instance. If you need instructions on how to deploy Mattermost, please review their documentation here.

Deployment

Part 1: Setup Needed Items to support a BrowZer Application

In this section:

Create a WSS enabled NetFoundry Hosted Edge Router
Create an Edge Router Policy
Create the Service
Create a Service Policy

In the Console, Create a NetFoundry Hosted Edge Router with the WSS Listener enable. BrowZer requires at least one Edge Router with the WSS Listener enabled. Launching a NF Hosted is recommended.

In the Console, Create an Edge Router Policy to make ensure this router is available for your Identities(Endpoints).

In the Console, Create the Service you want to access Mattermost. We recommend using an Advance Service. For the FORWARD ADDRESS, use the container name "mattermost" or the container's IP address. The FORWARD PORT should be 8065.

In the Console, Create a Service Policy(AppWan) to allow the access to the specified clients we’ll create later.

Part 2: Auth0 & JWT Signer

In this section:

Create an Auth0 Account
Create an Auth0 Application(SPA)
Add callback & logout
Create an Auth0 API
Create an Auth0 Custom Trigger
Gather Information from Auth0 needed
Create a new JWT Signer
Create a new Authentication Policy
Create or update the Identities(Endpoints)

This tutorial follows the Auth0 settings. Other IDP must have their own settings. If you don't already have an account you can sign up for a free account at https://auth0.com/signup

Adding a new Application in Auth0

Once you have an account setup you can add a new "Application":

Then click on the "Create Application":

Then Create a "Single Page Web Application":

Adding the callback & logout URL to your BrowZer App(s) you created

All BrowZer Apps have the following template:

https://<APP_NAME>.<NET_NAME>.browzer.cloudziti.io

where:

APP_NAME, is the name we’ll assign to the BrowZer app we’ll create.
NET_NAME, is the name we’ll assign the first time you click on “BrowZer Apps”.

In Auth0, under the Application/Settings you'll find "Allowed Callback URLs" & "Allowed Logout URLs"

You can add one callback URL for all apps are created under the same NET_NAME In this case, NET_NAME=natashell. The URL needs to be in this format: https://*.<NET_NAME>.browzer.cloudziti.io

For example:

 https://*.mattermost-demo.browzer.cloudziti.io

For Example:

Adding a JWT Signer & Authentication Policy

Create an API

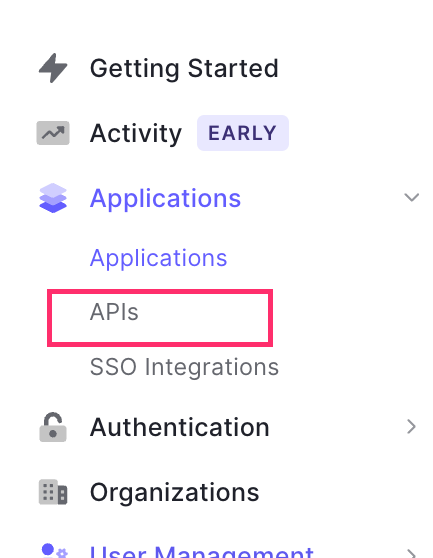

Now you can add a new "API":

Click on Create API

Auth0 Applications

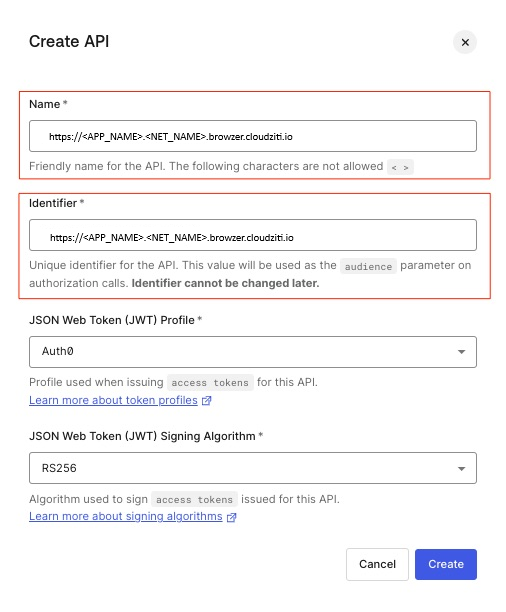

Fill out the form using the URL

https://<APP_NAME>.<NET_NAME>.browzer.cloudziti.io

Create a custom trigger

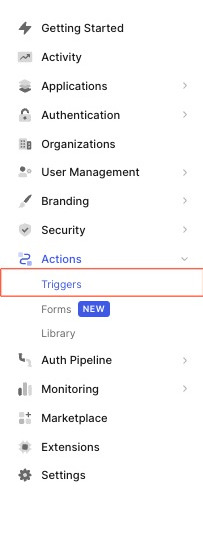

Under Actions select "Triggers":

Click on "post-login":
Auth0 Applications

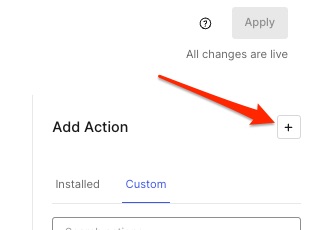

Click on the + symbol & select "Build from Scratch":
Auth0 Applications

Name the a new Action "Add Email to Access Token":

Auth0 Applications

Remove the prefilled out content & past the following:

/**
* Handler called during a PostLogin flow.
*
* @param {Event} event - Details about the user and the
* context in which they are logging in.
* @param {PostLoginAPI} api - Interface whose methods can be
* used to change the behavior of the login.
*/
exports.onExecutePostLogin = async (event, api) => {

if (event.authorization) {
api.accessToken.setCustomClaim(`email`, event.user.email);
}
};

then click on "Deploy":

Auth0 Applications

Return to "post-login" & click on "Custom"

Auth0 Applications

Click and drag your Add Email to Access Token Action onto the Trigger, then drop it into place, then click Apply in the top right.

Auth0 Applications

Gathering Information from Auth0

In order to setup the new JWT Signer we'll need to get some information from the new Auth0 Application that was just created.

From the Application we’ll require a few things we’ll need to write down. From the basic Information we’ll gather the “Domain” and “ClientID”

Scroll down to the Advanced Settings and click on Endpoints

You’ll also need to write down the OAuth Token URL that will be used on the BrowZer App creation and the JSON Web Key Set.

Create the JWT Signer

In the Console, Create a new JWT Signer

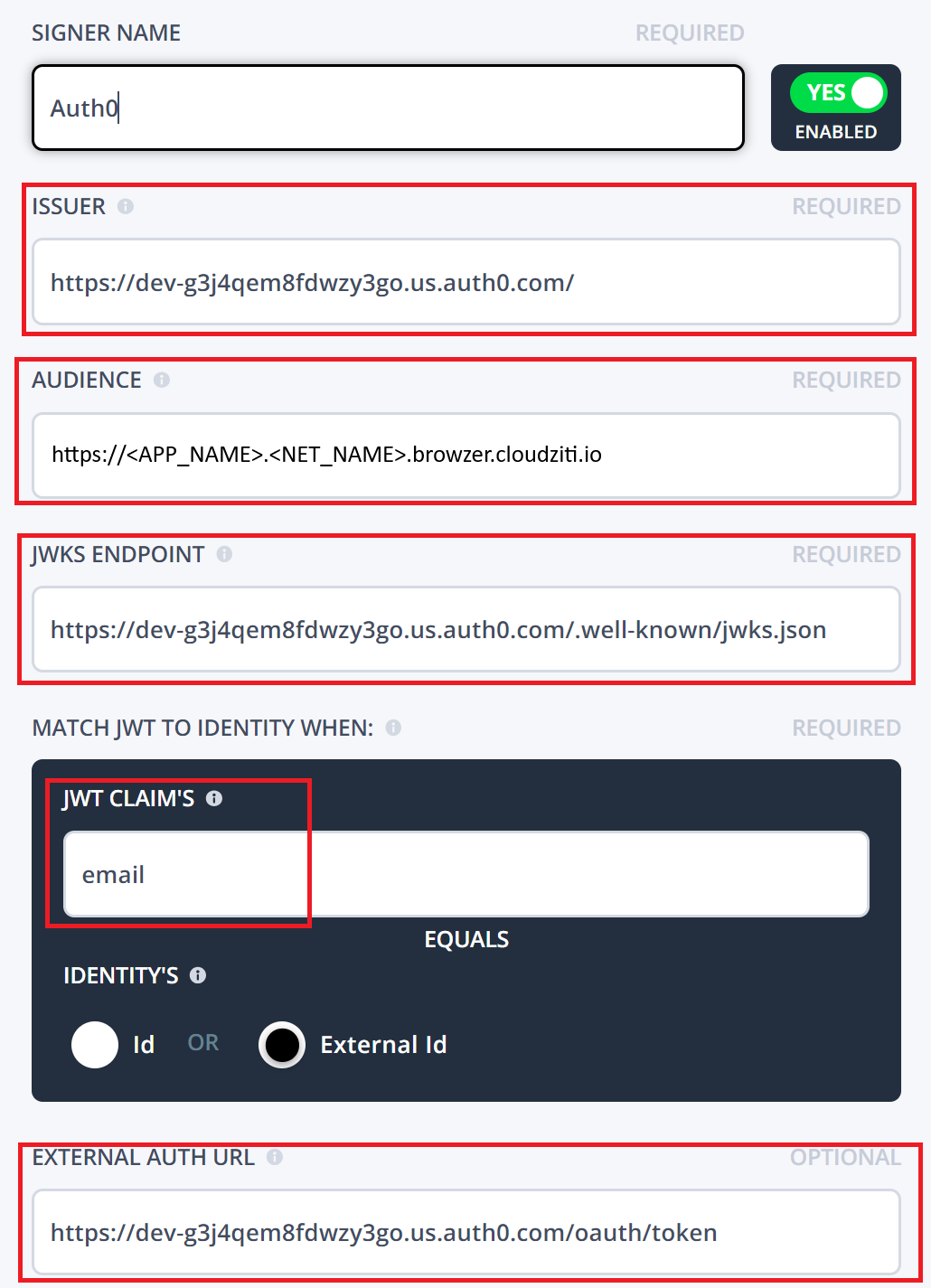

Using the values from Auth0 fill out the information in the new JWT Signer dialog.

For the ISSUER, use the “Domain” value.

https://<Domain>/

(Please make sure to add the trailing slash).

For the Audience, use the Identifier you used when creating the API above.

For the JWKS Endpoint, use the "JSON Web Key Set URL" value.

For the External Auth URL, use the "OAUTH Token URL" value.

Finally set the JWT Claim "email" & the Identities to "External Id".

Create the Authentication Policy

In the Console, Create a new Authentication Policy

In this example we disable the certificate options & only use the JWT Signer as the Authenticator.

Create or Assign Identities(Endpoints) to the Authentication Policy

In the Console, Create or update the Identities(Endpoints) that will have the access to BrowZer. Please ensure you have add the necessary attributes you define in your Service Policy(AppWan) to the Identities(Endpoints) so it’ll have access to the service.

Finally make sure it has an Authentication Policy you created for BrowZer

Part 3: The BrowZer Application

In this section:

BrowZer Getting Started
Create a new BrowZer Application
Access the Application

Make sure to complete the BrowZer Getting Started by clicking on the BrowZer Apps in the navigation menu.

Create a BrowZer Application

In the MOP Console, Create a new BrowZer Application.

For the App Entry, Select the service you created on Part 1.

For the Public URL, you’ll set a name for your app (APP_NAME), this name creates the whole URL you’ll use to access your service securely. In this case, APP_NAME=app and the URL is

For example:

https://app.mattermost-demo.browzer.cloudziti.io/

Set the OIDC Base URL to the “Domain” value from Auth0 in Part2, in the format:

https://<domain>

(This time without any slash at the end)

Set the ClientID to the "ClientId" value you got from Auth0 in Part 2.

Access your Application

The URL access is the one you got in the previous step. For this tutorial the URL is:

https://app.mattermost-demo.browzer.cloudziti.io/

After the authentication, you will be connected to mattermost landing page. If this is your first time connect to the page, you will be presented with the following screen.

Click on the check box "Remember my preference" & then "View in Browser"

Mattermost Changes

Site URL

Mattermost requires you to set the "Site URL". This value should be set to the URL used to access the application, in this case: https://app.mattermost-demo.browzer.cloudziti.io/

CORS

Since we are configuring Mattermost to be accessed from a URL that will likely not match the address used to actually access the service, CORS needs to be adjusted to allow cross-origin requests.
To update the CORS configuration, please refer to the official docs. We recommend listing each domain or configuring the with the "*".

APPENDIX

Create Your Own Mattermost Preview Instance

Prerequisites

A Linux/Windows Machine with docker & docker-compose installed.

Create a working directory for the Mattermost instance. We’ll call this directory WORK_DIR.

Change directory into WORK_DIR

Create a directory called ziti_router

Create a file called .env.

The .env file also holds the registration key for the edge router. You need to create an customer hosted edge router on the CloudZiti console and enter the registration key (REG_KEY) into this file.

Please follow this guide for the detail information on how to deploy edge router. In this example, our customer hosted edge router is named "Mattermost-ER"

REG_KEY=ONETIMEKEY

Create a docker compose file (docker-compose.yaml) in your WORK_DIR, where you can define the services needed for Mattermost. In the following docker compose example, we showed two containers:

mattermost
edge router (er)

version: '3'
services:
  mattermost:
    container_name: mattermost
    image: mattermost/mattermost-preview
    ports:
      - "127.0.0.1:8065:8065"
  er:
    container_name: netfoundry-er
    image: netfoundry/autonomous-router:latest
    restart: unless-stopped
    env_file: .env
    volumes:
      - ./ziti_router:/etc/netfoundry

After you have created the file, start your Mattermost instance with the command:

docker-compose up -d
